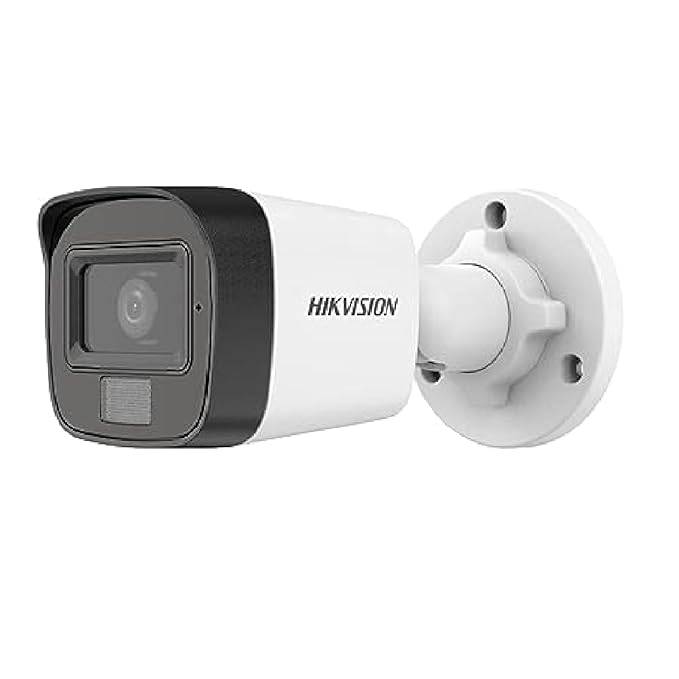

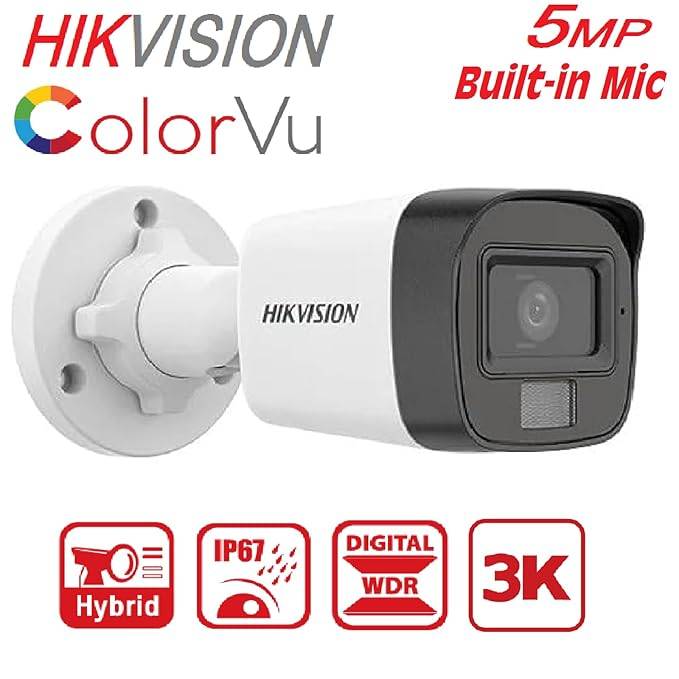

HIKVISON DS 2CE16K0T-IPFS 3.6mm Turbo HD
Expected delivery date: 22 Jan, 2026
SKU : JM1006Description
Camera
Image Sensor3K CMOS Max. Resolution2960 (H) × 1665 (V) Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s Day & NightICR Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° Signal SystemPAL/NTSC Lens
Lens Type2.8 mm and 3.6 mm fixed focal lens Focal Length & FOV 2.8 mm, horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
3.6 mm, horizontal FOV: 83°, vertical FOV: 48°, diagonal FOV: 102°
Lens MountM12 Illuminator
Supplement Light TypeWhite Light;IR Supplement Light Range IR : Up to 25 m
White Light : Up to 20 m
Image SettingsBrightness, Sharpness, Smart IR Frame Rate TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night ModeIR/White Light Wide Dynamic Range (WDR)Digital WDR Image EnhancementYes White BalanceAuto/Manual AGCYes Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS General
MaterialPlastic Dimension138.8 mm × Ø70 mm (5.47" × Ø2.76") Approx. 160 g (0.35 lb.) Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) CommunicationHIKVISION-C LanguageEnglish Power Supply 12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
ConsumptionMax. 2.9 W Approval
ProtectionIP67
